Grange PlumbingThis is a genuine customer installation from our team at Grange Plumbing — a full underground water supply pipe replacement in Sussex using new 32mm MDPE, protective ducting, a modern internal stop tap and concrete reinstatement. Below is exactly what happens during a professional water main replacement, in order, with photos from the actual job.
Why this customer chose to replace rather than repair
Short answer
The old pipe was ageing, pressure had dropped, and repeated repairs weren't cost-effective. A new 32mm MDPE water supply pipe restores full flow and delivers 50+ years of reliable service.
The existing supply pipe was decades old, the water pressure into the house had dropped noticeably, and a small leak had already been repaired once. Rather than patch a tired pipe a second time, the homeowner opted for a full water main replacement in new 32mm MDPE — the modern standard for domestic and light-commercial supply pipes across Sussex.
Old pipe
Older supply pipes — lead, galvanised steel or thin-walled early plastic — corrode, narrow and eventually leak. Once one section fails, others usually follow.
Future reliability
Modern 32mm MDPE is rated for 50+ years and resists corrosion, ground movement and minor impacts far better than legacy materials.
Better water pressure
A larger 32mm bore delivers more flow than an old undersized supply, which is especially noticeable for showers, combi boilers and multiple-tap use.
Long-term investment
Replacing once, properly, is cheaper over 10–20 years than repeated repairs — and it protects the property value.
Protecting the pipe where it enters the house
Short answer
The new MDPE pipe is sleeved in a blue protective duct where it enters the house. This protects the pipe, allows for ground movement, keeps it dry, and means the pipe can be pulled out and replaced in future without breaking up the floor.

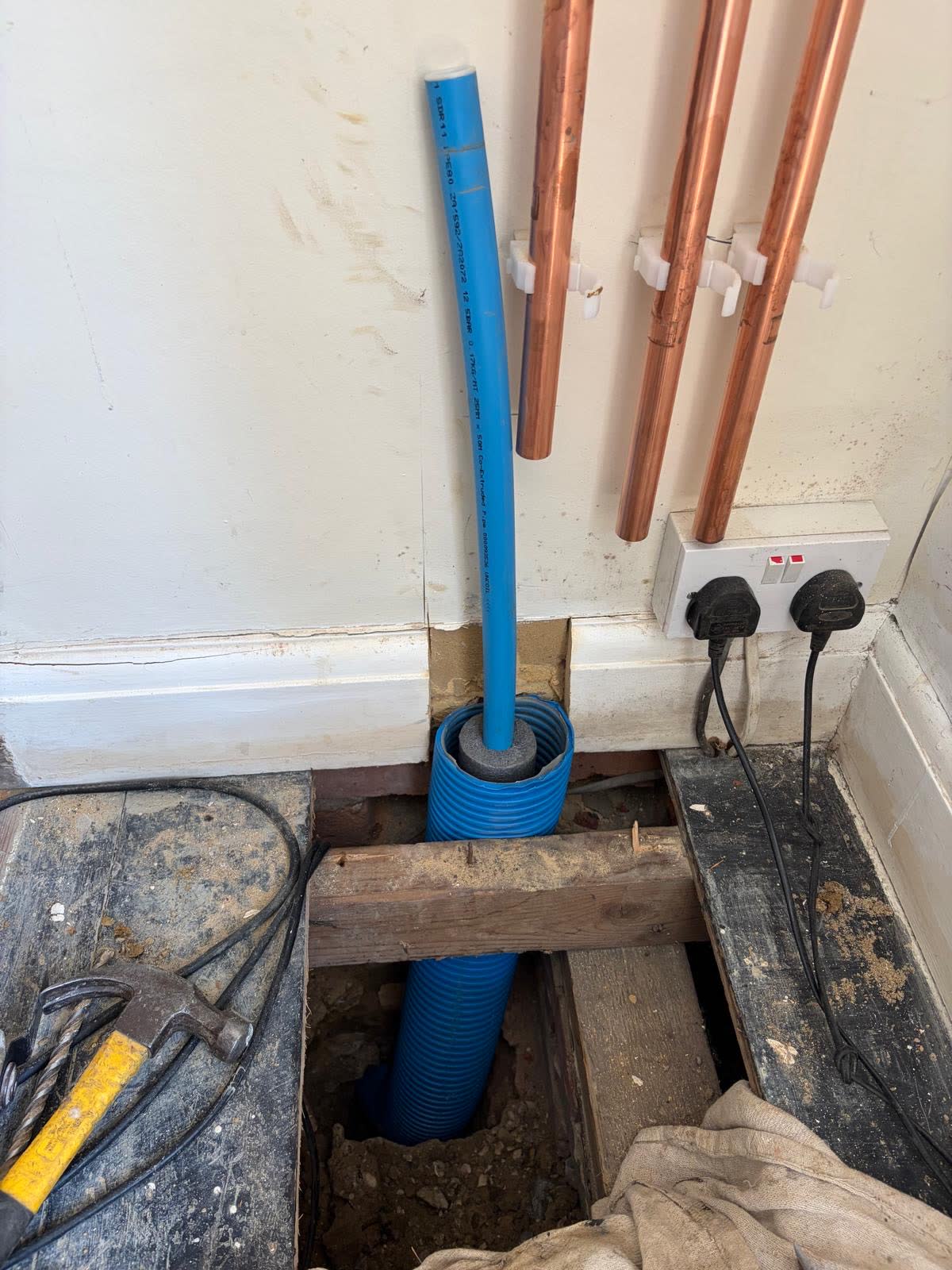

Every good water main replacement uses a protective duct where the new pipe enters the property. The photo below shows the new 32mm MDPE water supply pipe rising up through blue ducting into the property — the exact detail that separates a professional installation from a rushed one.
Blue duct
The blue outer duct is a purpose-made sleeve that houses the MDPE pipe as it passes through the wall or floor slab.
Future replacement
If the pipe ever needs replacing again, it can be withdrawn and re-pulled through the same duct — no need to break up floors or walls.
Protection
The duct shields the pipe from concrete, aggregate, foot traffic and any accidental impact from future works.
Movement
Ground and building settlement is normal. The duct gives the pipe room to move without stressing the joint.
Waterproof sealing
A proper mastic and grommet seal at the wall entry stops damp, draughts and vermin using the duct as a route into the property.
Insulation
Where the pipe passes through cold voids or exposed floor sections, foam lagging inside the duct protects it against freezing in winter.
Installing the new internal stop tap
Short answer
A brand-new lever stop tap is fitted to the incoming MDPE pipe inside the house. It shuts the water off with a quarter-turn, is easy to reach, and replaces the old seized stopcocks common in Sussex homes.
Once the pipe is inside, the next step is a new internal stop tap fitted directly onto the MDPE — the second photo below. This is where the homeowner isolates the water for maintenance, holidays or emergencies, and it's one of the most important components in the whole installation.
Easy isolation
A modern quarter-turn lever valve shuts the water off in seconds — no wrestling with a seized brass stopcock in an emergency.
Future maintenance
Any future plumbing work, from a new bathroom to a burst pipe, starts by turning this valve. Positioning it accessibly is part of the job.
Modern installation
New WRAS-approved fittings, compression joints on the MDPE, and copper pipework onwards — installed to current UK water regulations.
The finished installation
Short answer
The completed installation shows the new water main, ducting and stop tap neatly finished, with the room reinstated around it.

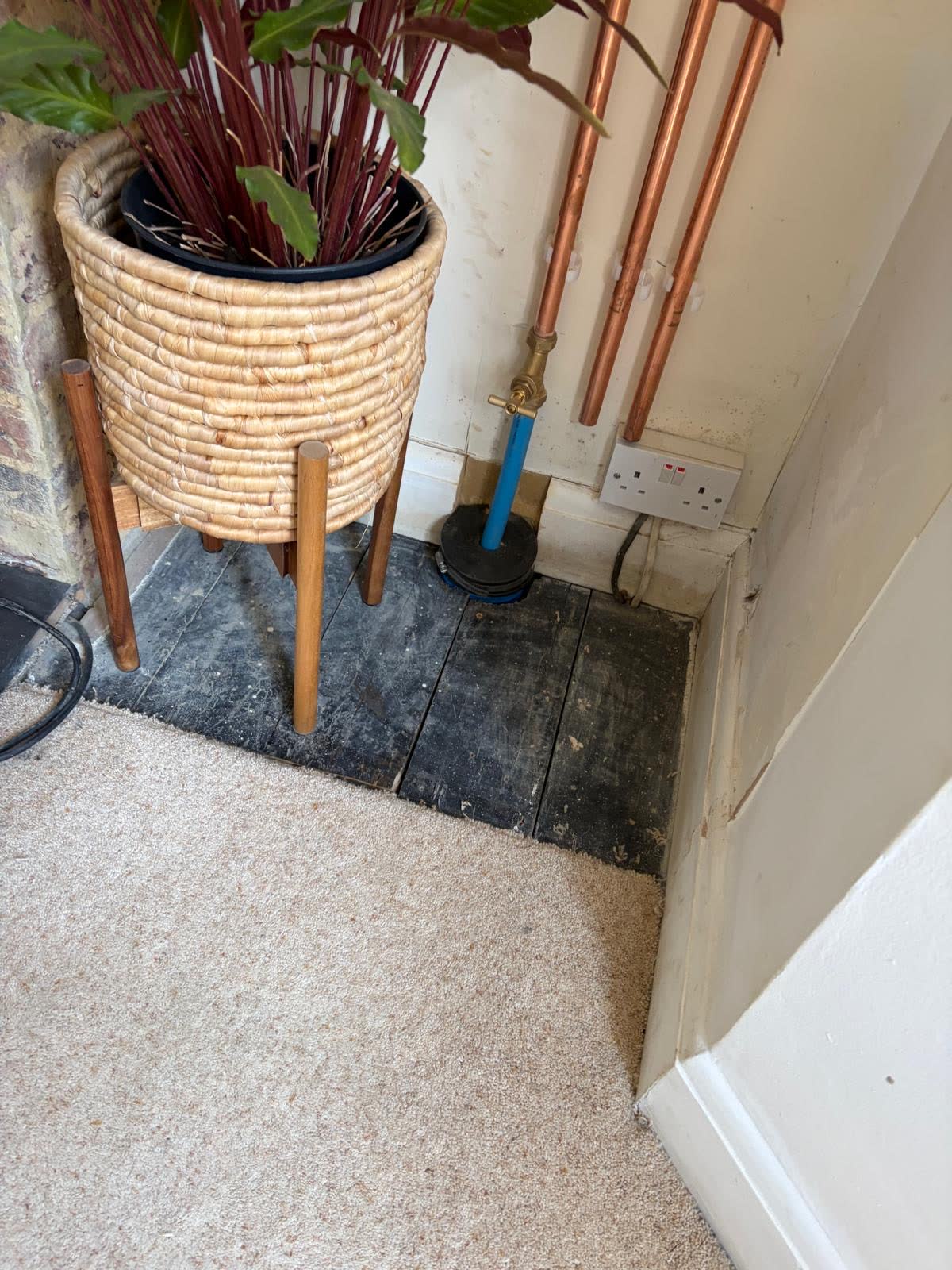

With the stop tap fitted and the copper connected to the existing internal plumbing, the installation is complete and pressure-tested. The finished job sits tidily behind the skirting, clear of the carpet line, with the new stop tap visible and easy to reach.
Making good afterwards
Short answer
Outside, the entry pit is backfilled and concrete reinstated flush with the surrounding path. Inside, floorboards and skirting are refitted. The site is left clean and tidy.

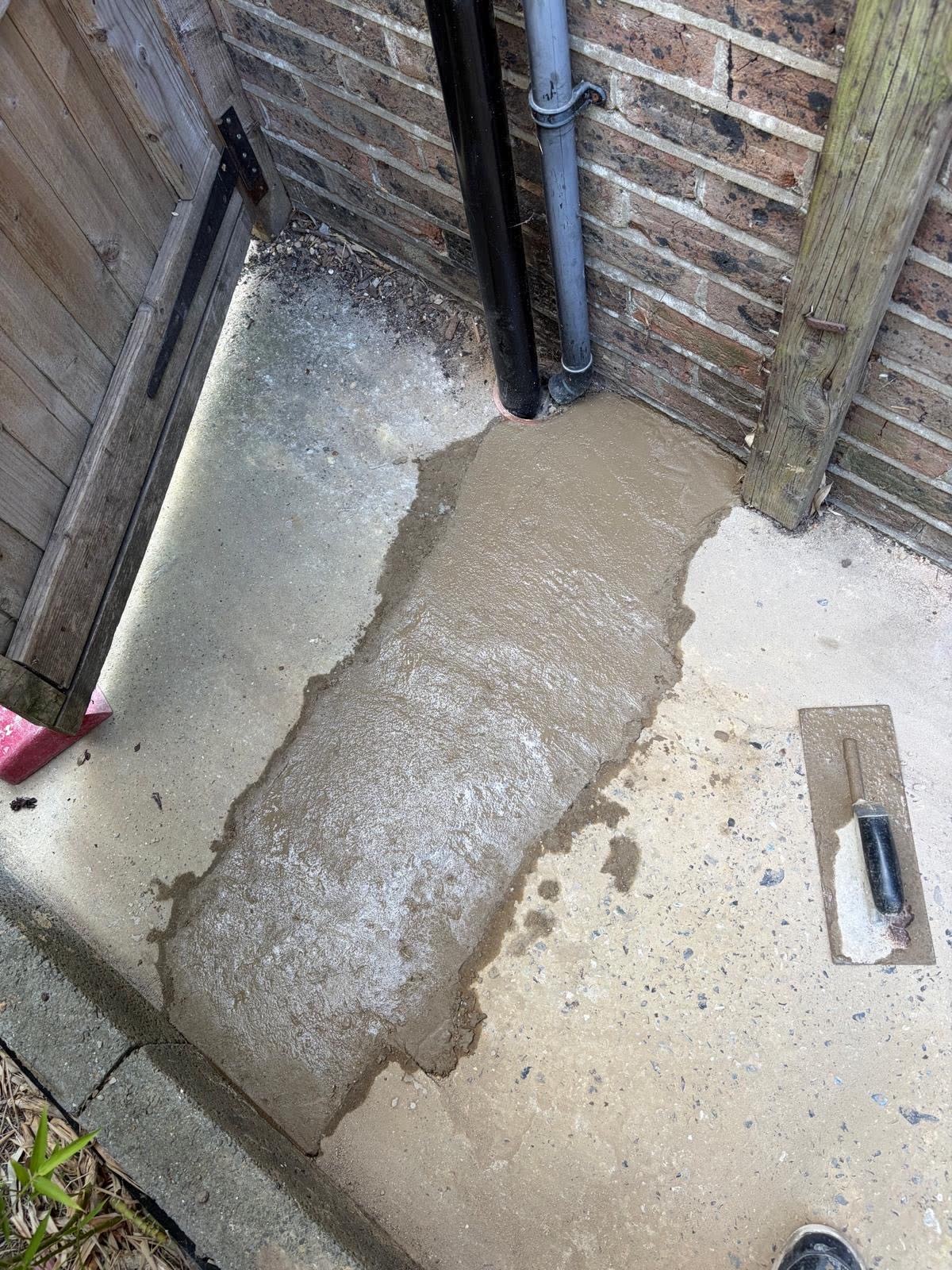

A proper water main replacement isn't finished when the water is back on — it's finished when the property is put back together. Outside, the small entry pit was backfilled and concrete reinstated flush with the surrounding path, ready to take foot traffic and weathering.
Concrete reinstatement
Where paving or concrete is disturbed, it's cut cleanly, backfilled properly and reinstated with fresh concrete — not just tamped soil.
Internal making good
Floorboards, skirting and any lifted flooring are refitted. Where the pipe enters through a wall, the hole is sealed and finished.
Minimal disruption
Thanks to moling, only two small pits are dug — the rest of the driveway, lawn and garden stays untouched.
Clean finish
Rubble and off-cuts are removed. We leave the site clean and swept — the way we'd want a job left at our own house.
Benefits of replacing an old water supply pipe
The benefits of a new MDPE water main go well beyond "the leak has stopped". A modern supply pipe transforms daily water use and protects the property long-term.
- Improved water pressure throughout the house
- Reduced risk of future leaks and burst pipes
- Reliable water supply — no more repeat repairs
- Suitable for modern demand: combi boilers, showers, dishwashers
- 50+ year lifespan on MDPE, WRAS-approved
- Potentially improves property value at resale
When should you replace your water main?
You don't always need a burst pipe to justify replacement. These are the signs we see most often on Sussex jobs where replacement is the right call.
- Persistent low water pressure at every tap in the house
- One or more leaks already repaired on the same pipe
- Old lead supply pipe (pre-1970 property, never replaced)
- Old galvanised steel pipe corroding from the inside
- Repeated pinhole repairs on early plastic or copper
- Unexplained rise in water bills or a ticking meter with everything off
- Discoloured or brown water from the cold tap first thing
How long does a water main replacement take?
Short answer
Most domestic water main replacements are completed in one day. Longer runs, tricky access or driveways sometimes push it to two days. Moling avoids digging a trench and keeps the surface intact.
Most domestic water main replacements in Sussex are completed in a single working day. Some longer runs — under driveways, around trees, or where access is tight — take two days. Using trenchless moling we only need two small pits, one at the boundary and one at the house, so there's no long trench to dig or reinstate.
Usually one day
A typical 15–25m run with reasonable access is a single-day job — survey, dig, mole, connect, test, reinstate.
Sometimes two
Longer or split-shot moles, complex reinstatement, or coordination with the water company can extend the job to two days.
Depends on distance
Distance from boundary to house is the biggest factor. Anything over 25m may need the shot split into two pulls.
Driveways
Block paving, concrete and tarmac drives are all easily crossed with moling — no need to lift the surface.
Access
Tight side passages, gates and stepped gardens can slow things down but rarely stop the job.
Moling
Trenchless moling is the backbone of a same-day replacement. It's why we can quote fixed prices with confidence.
Frequently Asked Questions
Does replacing my water main improve pressure?
Yes — almost always. Old lead, galvanised and undersized pipes restrict flow. Replacing with new 32mm MDPE restores full pressure to modern combi boilers, showers and taps immediately.
Can you replace the pipe without digging the whole garden?
Yes. Using trenchless moling we only dig two small pits — one at the boundary and one at the house — and pull the new MDPE pipe through underground. The lawn, driveway and paving in between stay untouched.
How long will a new MDPE pipe last?
New 32mm MDPE water supply pipes are rated for a service life of 50+ years and are WRAS-approved for potable water. Correctly installed, this is a once-in-a-lifetime job for most homes.
Who owns the supply pipe?
You do. From your property boundary to the house, the supply pipe is the homeowner's responsibility. The water company owns the communication pipe from the main in the road to the boundary. See our full guide.
Do I need a new stop tap?
We strongly recommend it. Old stop taps often seize solid over decades and can't be relied on in an emergency. A new quarter-turn lever valve is fitted as standard on every replacement.
Will you make good afterwards?
Yes. Concrete, paving and internal flooring are all reinstated as part of the job. The site is left clean and tidy.
Can this be done in one day?
Most jobs are completed in a single day, including the pressure test and reinstatement. Longer runs or awkward access can extend to two days — we'll always tell you upfront in the written quote.
